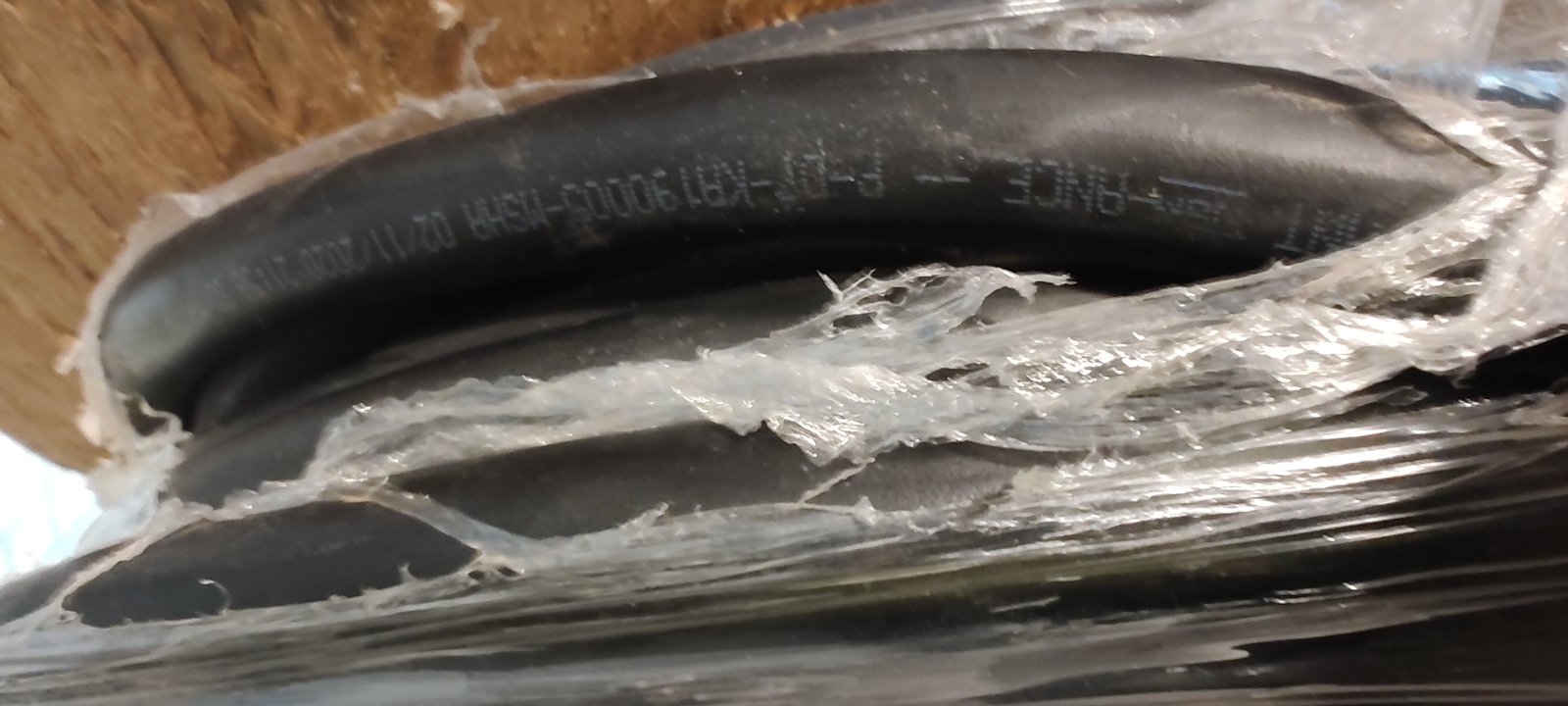

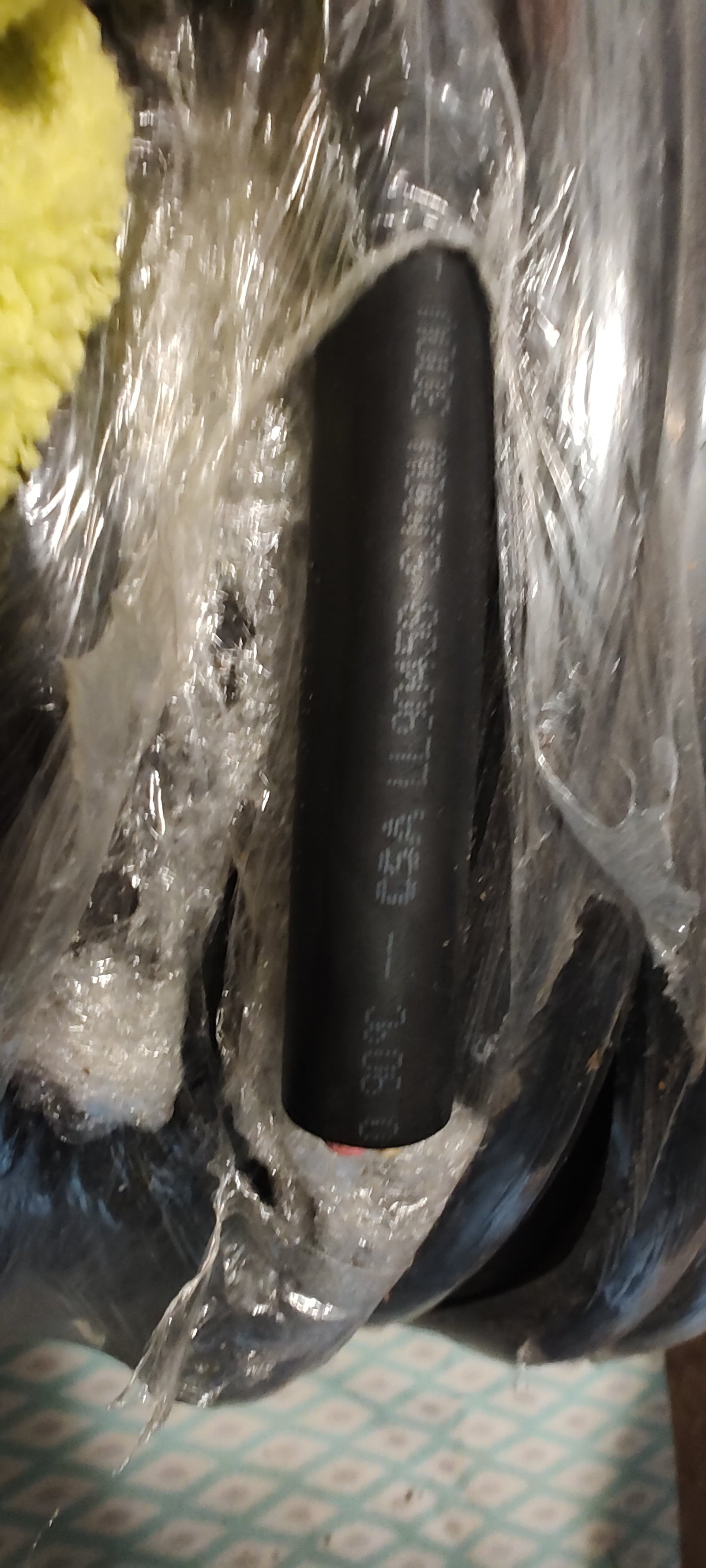

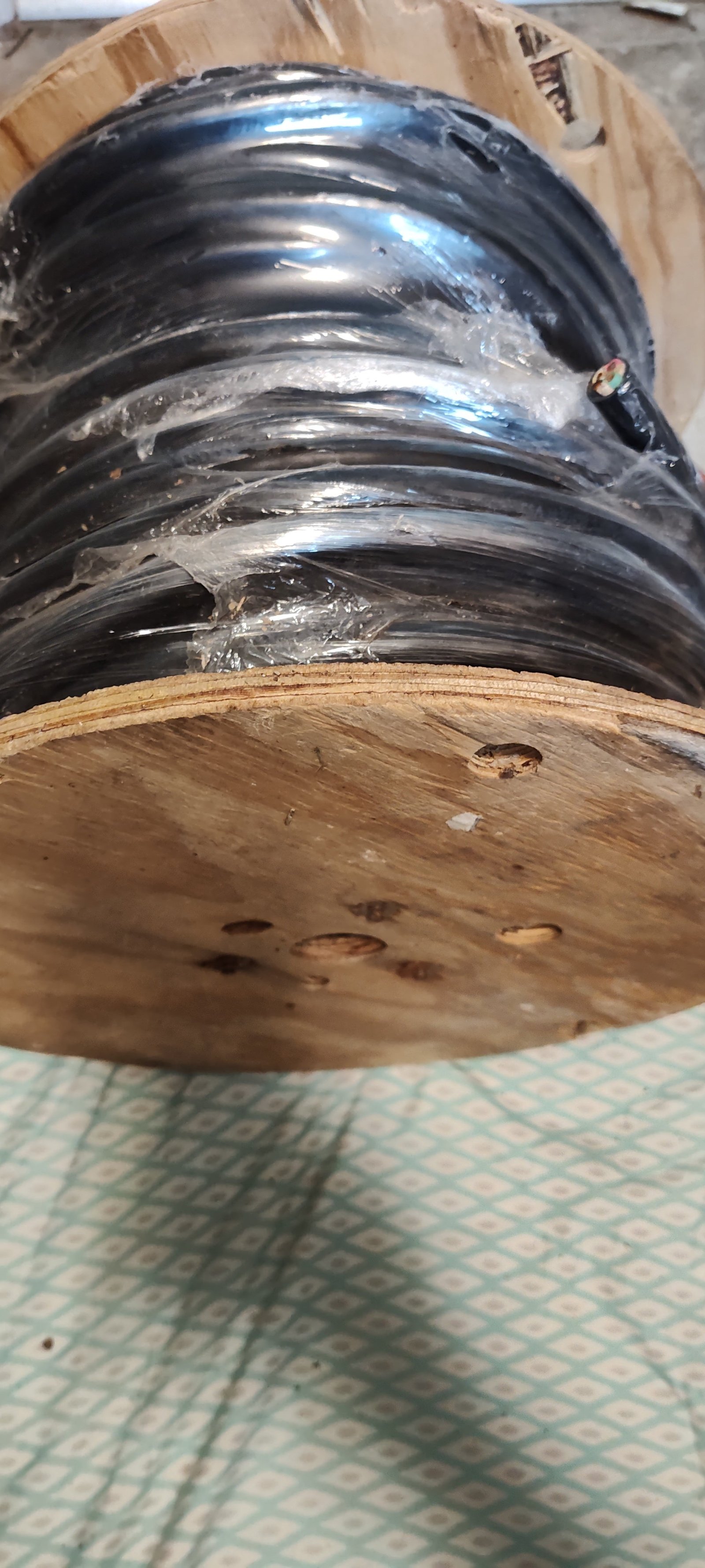

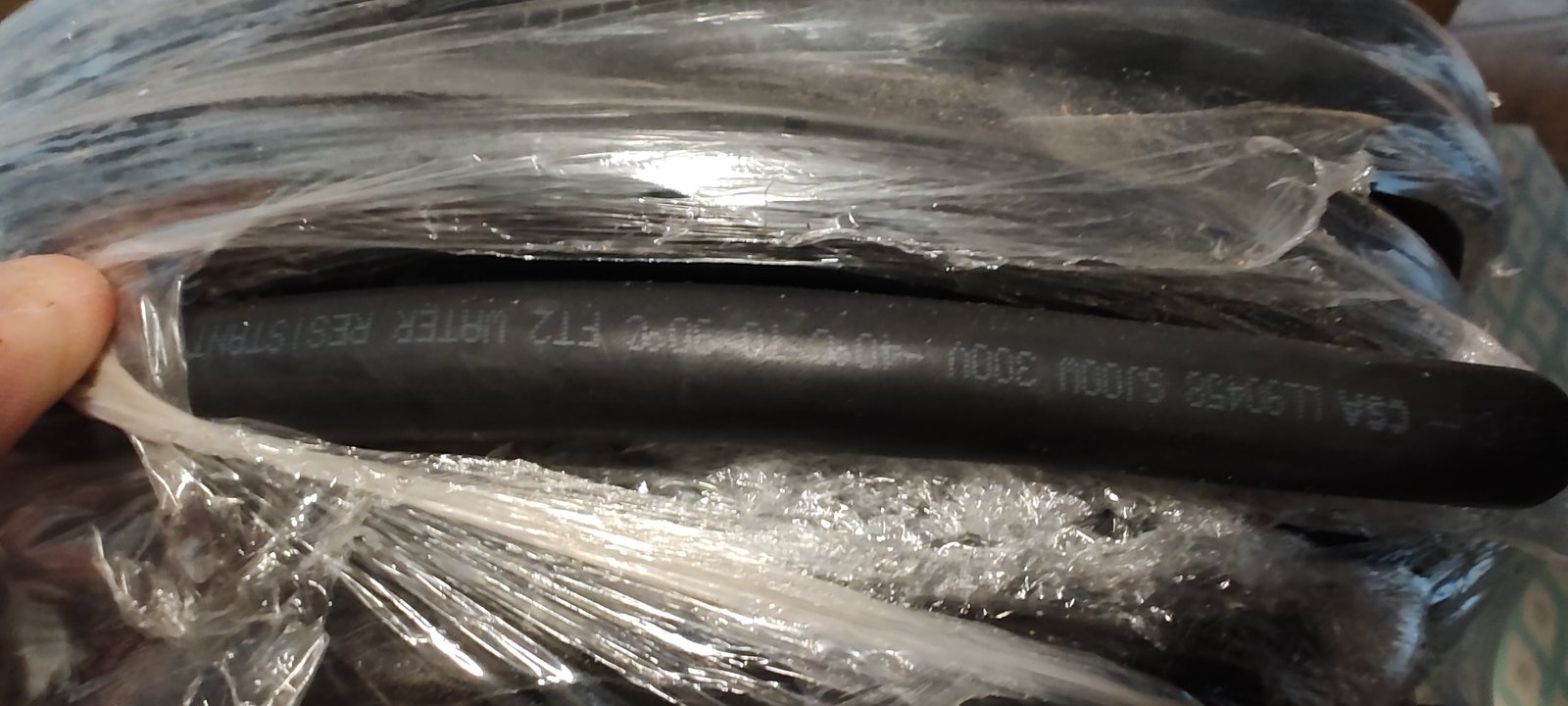

SEE ACTUAL PHOTOS BELOW BEFORE PURCHASE TO VERIFY THIS PRODUCT IS WHAT YOU ARE LOOKING FOR. Thanks

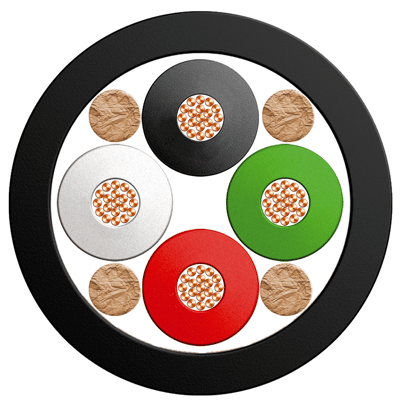

10 AWG SJOOW 300V Portable Cord is a heavy duty multi-conductor cable suitable for delivering power to tools, equipment, appliances, and other portable machinery for indoor & outdoor use. The 4 flexible EPDM-insulated wires (black, white, red, & green) and the rugged black CPE outer jacket make for a robust cable that resists oils, solvents, moisture, sunlight (UV), and many other types of weathering. The cable is even suitable for immersion in water if it is properly sealed & terminated.
Dimensions
| Wire Sizes & Stranding | 10 AWG (104/30) |
Details
| Voltage Rating | 300 V |
| 10 AWG | 25 A, 0.655″ |
| Footage | 250′ |
| No. of Conductors | Four, Individually Insulated |
| Cable Outer Jacket | Black CPE |
| Roll Weight | 80 LBS. |
| Cable Type | UL Style SJOOW Portable Cord |
| Insulation Material | EPDM |
| Insulation Color | Black, White, Red, & Green |
| Number of cable strands | Multi-Strand 104ct |
| Model # | SJOOW |
| Conductor Material | Bare Copper |
| Temperature Rating | 90°C (194°F) |
LOCATION-TAN02
