SPECIFICATIONS

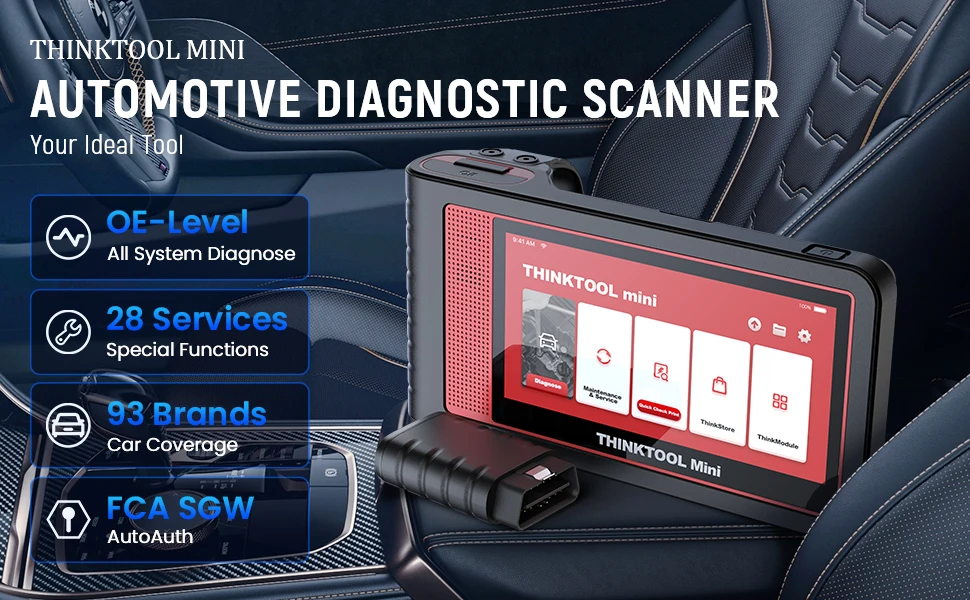

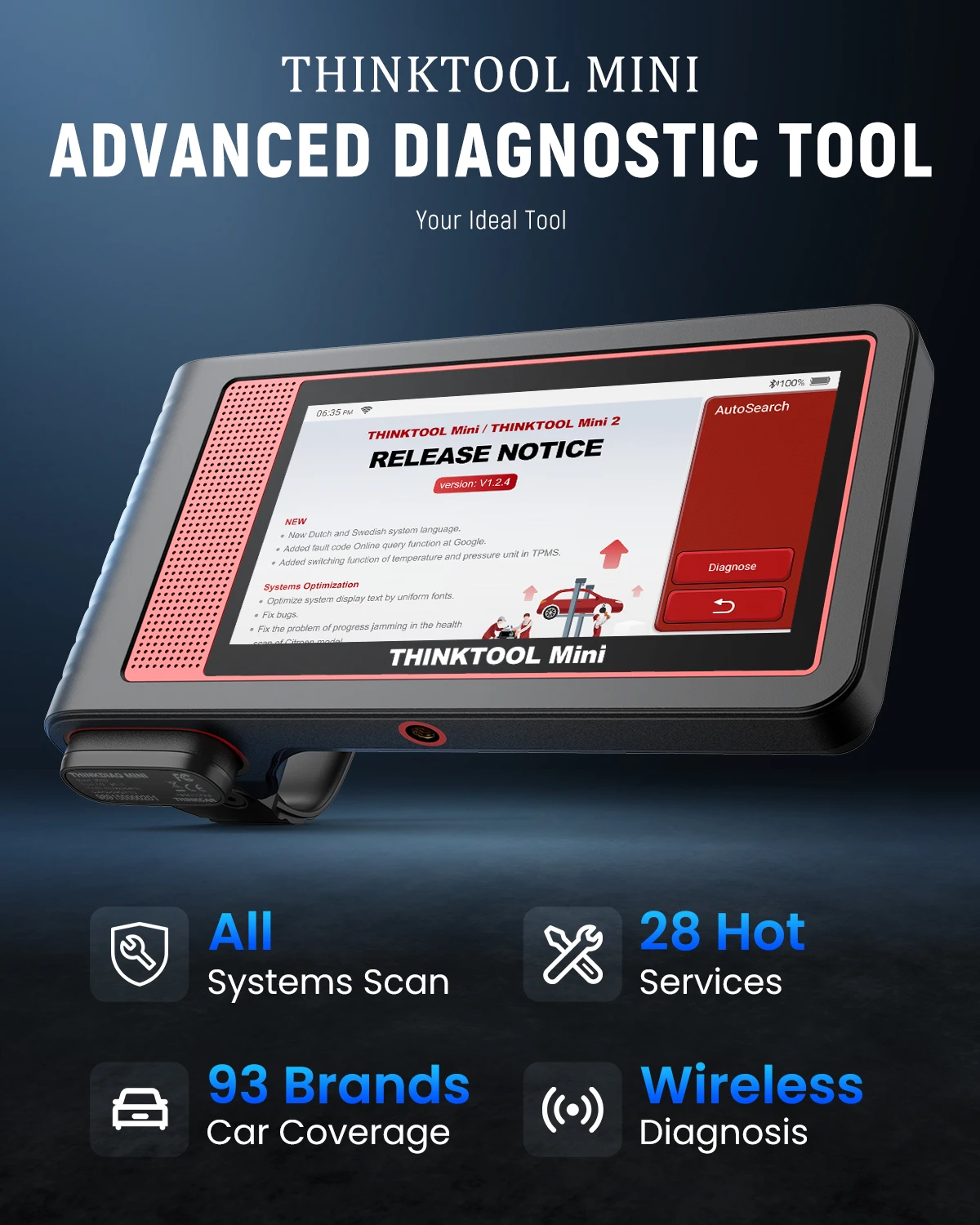

Why You Need THINKTOOL Mini?

Thinktool mini as the Highest-level FULL OBD II Diagnostic Device For DIY users supported include Code Reading/Clearing data stream,Actuation Test ,Special Functions etc
1.Free system-wide code reading, code clearing, data streaming and upgrades for all models.
2.The full reset function is free to use (currently 16 and will be increased to 26-28 later).
3.After subscribing to the software, the whole system can be diagnosed with full functions (action test, special function, cding can be carried out).
4.Android system can be upgraded online.
5.The whole system diagnoses more than 93 automobile brands.
6.Diagnosis covers all models that support OBD protocol after 1996.
7.Equipped with VIN code intelligent identification models.
8.THINKCAR series design, dustproof, shockproof, easy to store
9.5.99-inch display is convenient for you to diagnose the car in real time
10.2G RAM/ 32G ROM,Support Bluetooth and WiFi connection
11.Pay for one Car model software can enjoy Free Upgrade 1 year the full system ,Such as :ECU Coding/ Action Test and other Special Function
Cost: $49.95/year (you can buy from ThinkCar Store directly)

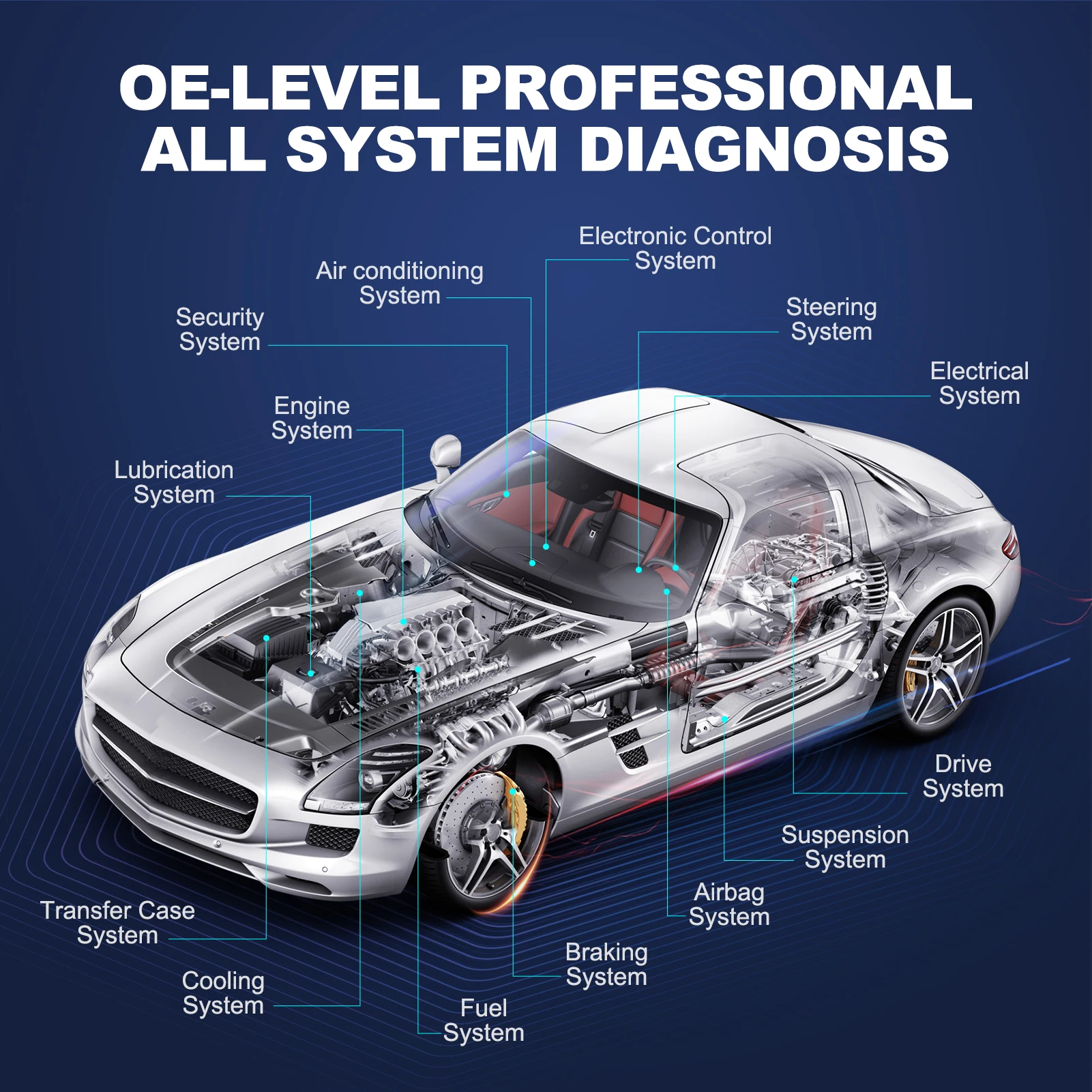

Support All System Diagnostic:

With superior all systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems’ECU information to facilitate the vehicle diagnosis.The complete systems vary from different cars and they usually include engine, transmission, ABS, SRS, SAS, TPMS, EPB and chassis / body / electrical equipment system etc.
* Examinate your car like a professional mechanical technician
*Read DTCs from the vehicle’s all electronic control systems to locate problem areas, and offer solutions;
*Erase the codes easily after DTCs retrieving and certain repairs have been carried out and turn off fault Indicator lamp;
*Live data shows each sendor parameter item displayed in analog, text, waveform graph modes etc.;
*The active test used to access vehicle-specific subsystem and component tests.

Support 28 Reset Services Lfietime Free

1.Oil Lamp Reset Service

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

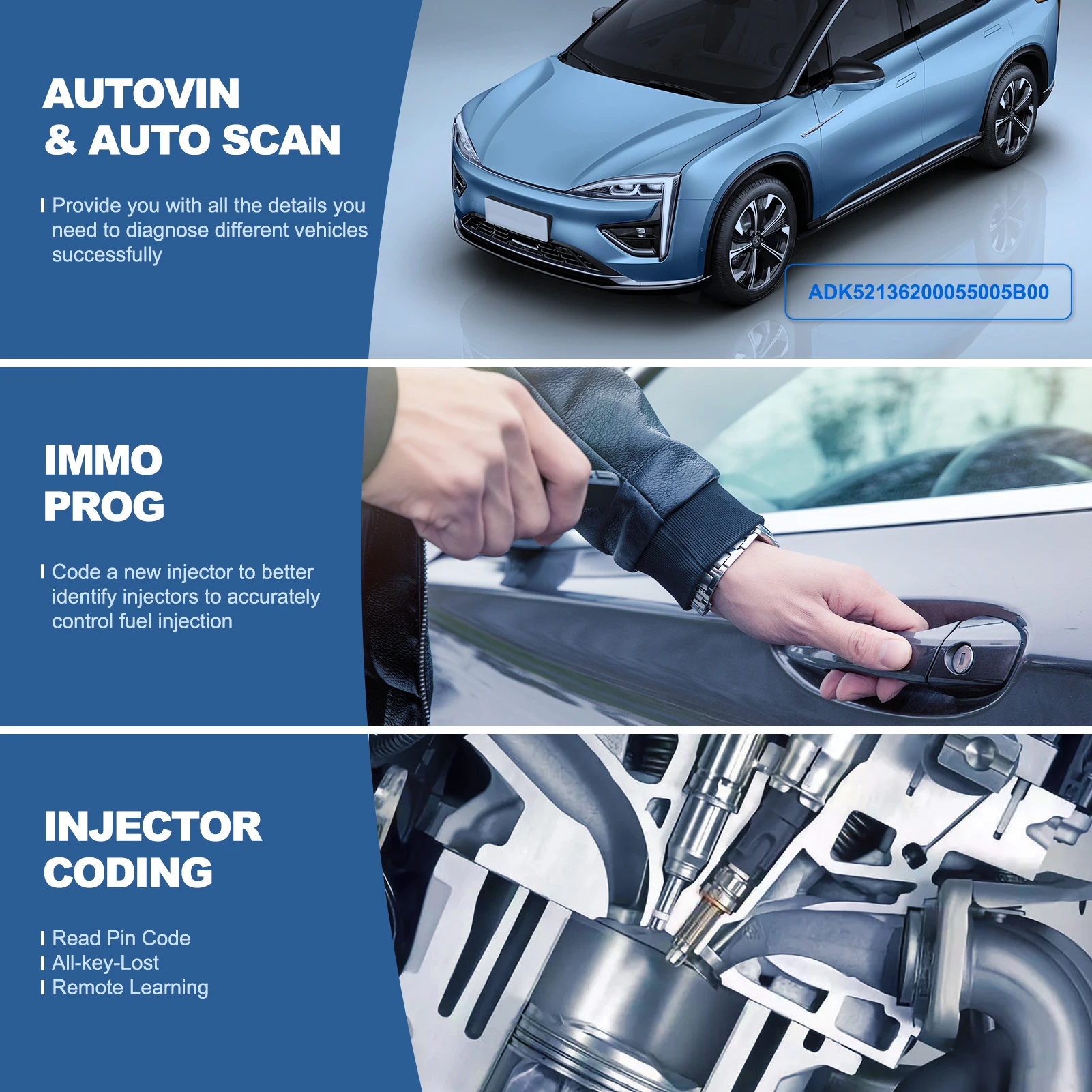

7.IMMO Key Programming

The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset

'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset

Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17.A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

19.Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

22.Language Change

This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset

Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

24.ODO Reset

a) ODO reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.
b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it
is necessary to do ODO reset after maintenance.

25.Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

27.Transport Mode

ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

28.Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

Free Full OBDII Functions:

*-Read extensive current, pending and permanent codes in OBD system quickly
*-Clear detected fault codes and turn off the Check Engine Light efficiently
*-View graphical live data of vehicle's computer module(s) for easy analyses
*-View the vehicle's operating parameters at the moment a DTC is detected
*-Read I/M readiness status to have a vehicle inspected for state emissions compliance
*-Perform O2 sensor test to check fuel efficiency and vehicle emissions
*-Read the results of on-board diagnostic monitoring tests for specific components/systems
*-Retrieve the vehicle information of VIN, CINs, and CVNs completely
*-Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system

Support to ECU Coding

The Coding function is used to re-flash the vehicle control modules.Thinktool mini diagnostic scan tool allows you to reprogram adaptive data for certain components after making repairs or replacements, providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts.

Thinktool mini car diagnostic scanner is able to modify the adaptive data for vehicle control modules after repairs or replacements of vehicle parts.

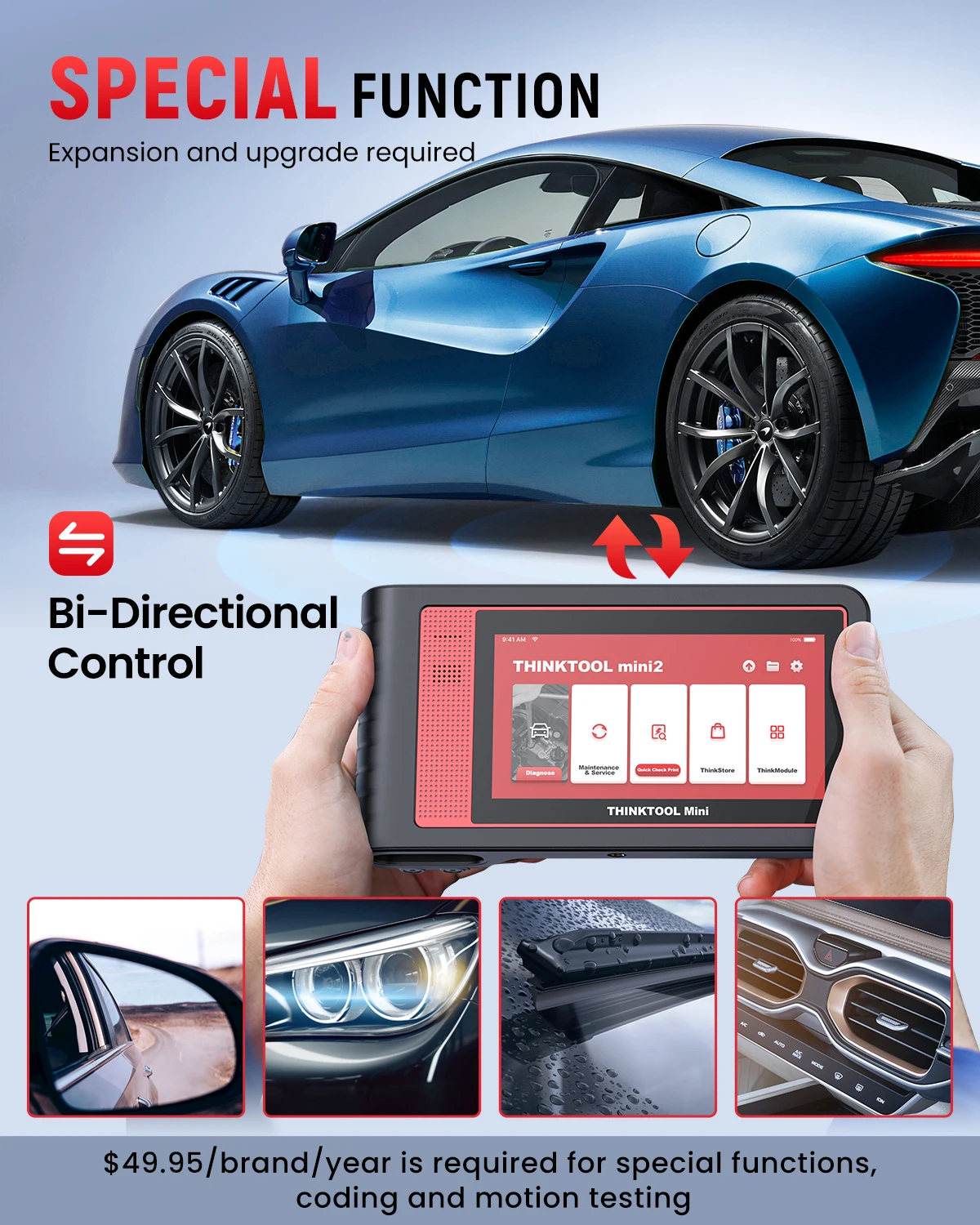

Support Active Test (Actuation Test)

Uses the ThinkDiag App to test if the actuator is normal, without using the vehicle’s controls, to get a significant boost in effectiveness:
[ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]

Support 16 Languages

English, French, German, Italian, Spanish, Portuguese, Japan, Russian, Polish, Hungarian, Arabic, Greek, Slovak, Traditional, Korean

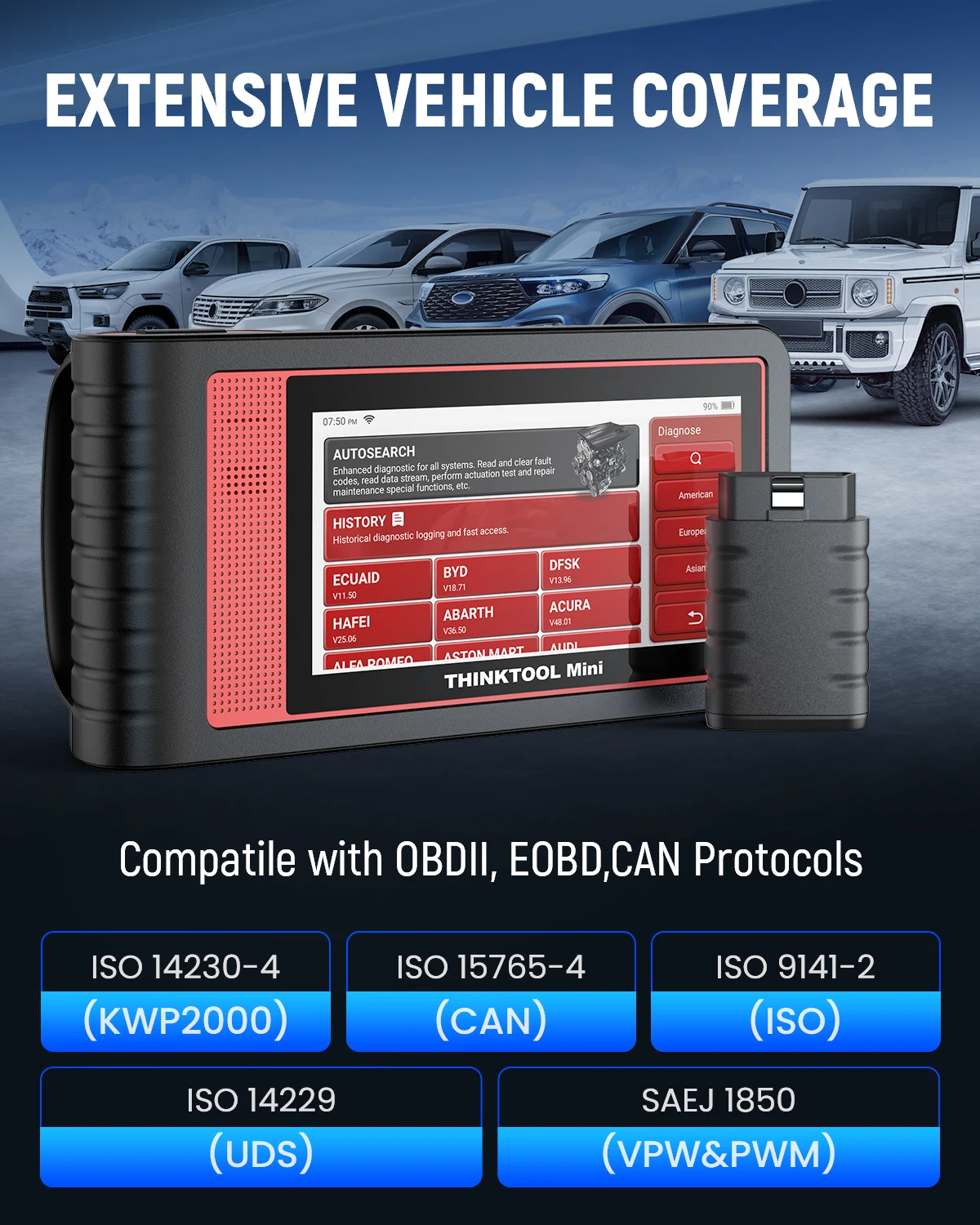

Support 220+ Car Brands and 1000+ Vehicles

USA：
BXGM,CHRYSLER, AUSTFORD, GM,USAFORD

EUROPE:
ASTONMARTIN,AUDI,BENZ,BMW,BXFIAT,CITROEN,FERRARI,FIAT,GAZ,LANDROVER,MASE,RATI,OPEL,PAZ,PEUGEOT,PORSCHE…

Austrillia:
AUSTFORD,AUSTHOLDEN

Asia:
BAIC,CHANGAN,CHANGCHENG,CHANGHE,DAEWOO,DAIHATSU,DFXK,FLYER,FUTIAN,HAFEL HMAZDA,HONDA,HUACHEN,HYUNDAI,IKCO,INDIANMARUTI,INDIANTATA,ISUZU,IVECO.IZH,JACTY JIAO,JINLONG,JOYLONG,JPISUZU,KIA,LIFAN, LIUWEITY ,LUXGEN,MAHINDRA,MALAYSIA PERODUA,MALAYSIA PROTON,MARUT,MAXUS,MAZDA,MITSUBISHI…

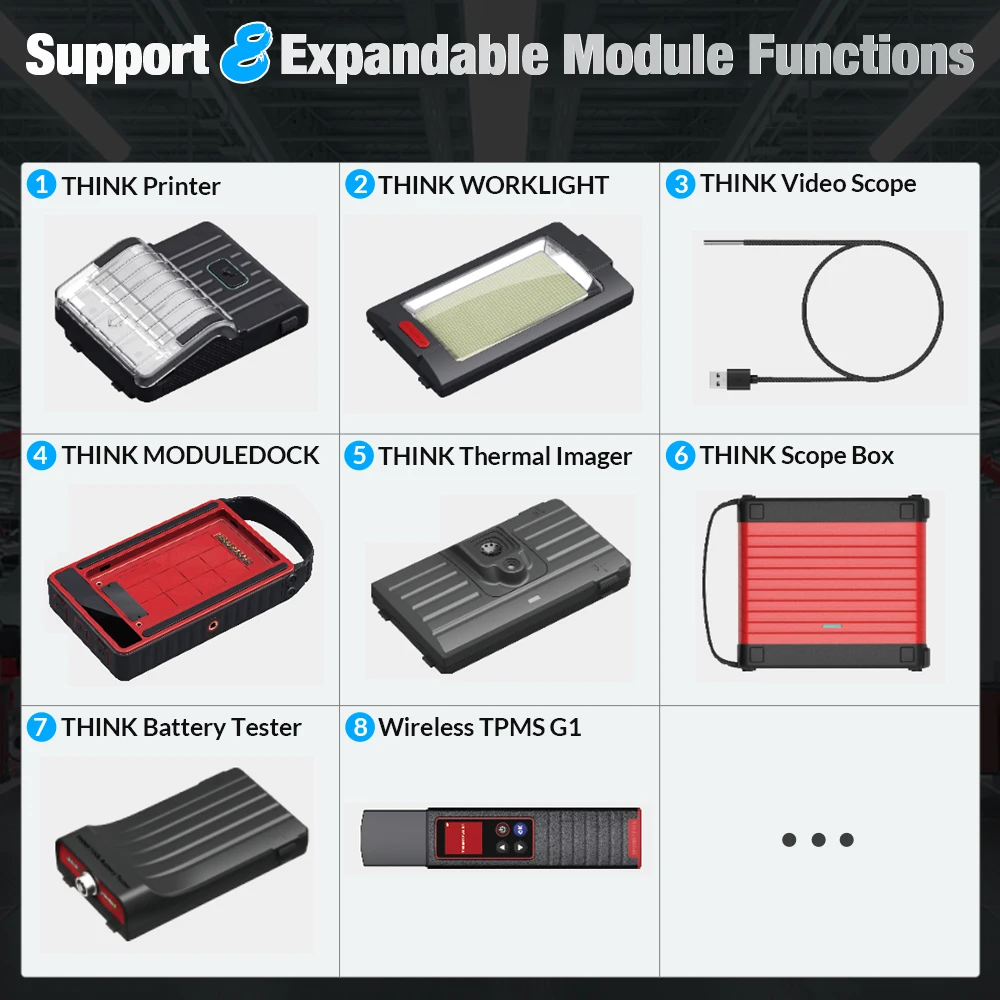

Support Modular expansion

Support 8 optional modules:printer, work light, videoscope, battery tester, scope box, thermal imager, moudledock, wireless TPMStool （note: you can buy those model on our store)

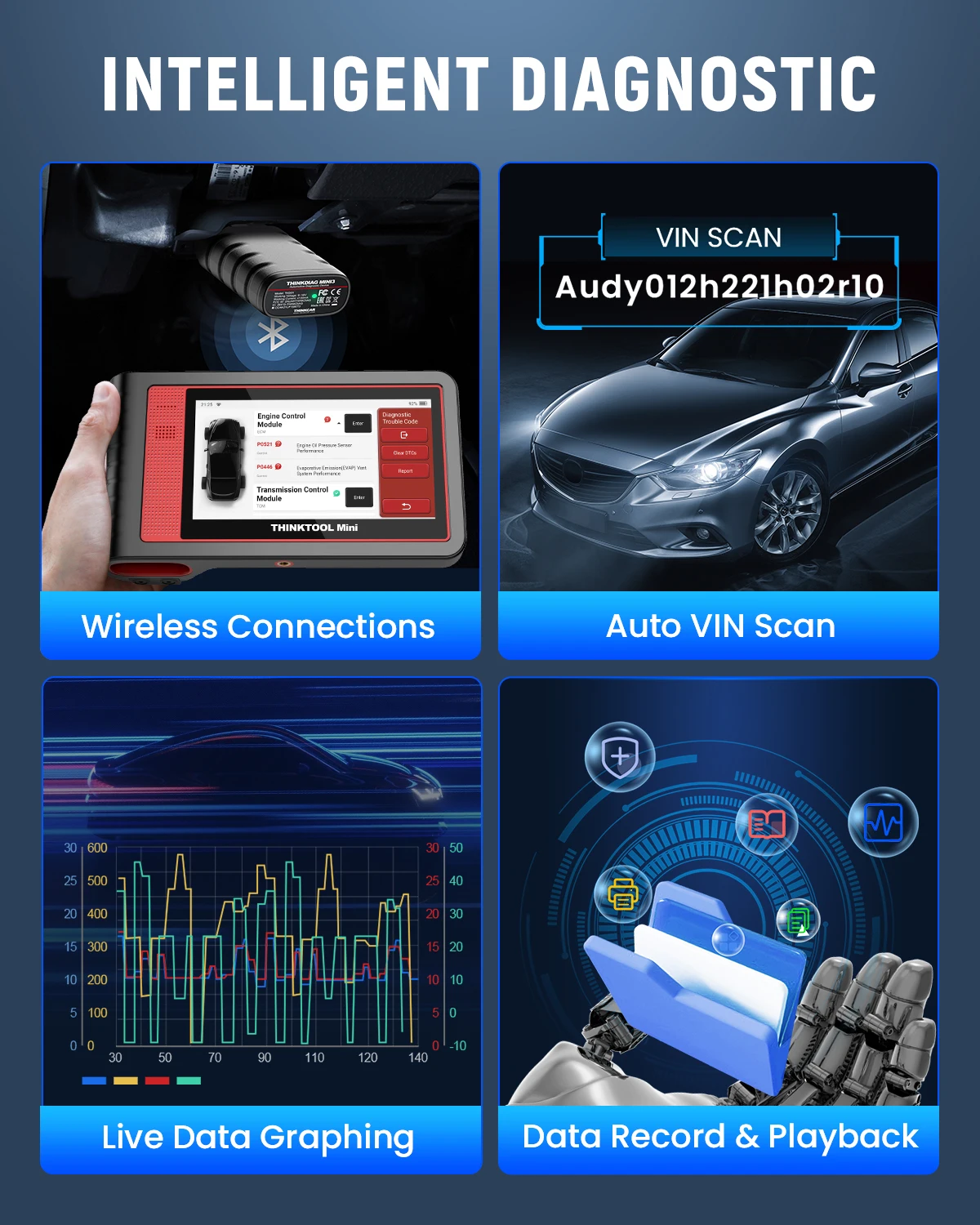

4 IN 1 Scientific Data Management: Live Data Stream Graph & Record Data & Diagnosis Record Playback & Print Report

The professional vehicle scanner tool can scientific graph data, record data, play back data, freeze frame,and print reports.

In the real-time diagnosis process, important diagnosis information can be instantly stored in the memory, including reading of fault codes and frozen frames and real-time data streams.
After real-time diagnosis is completed, Diagnosis function record playback, the diagnosis information and process previously saved in the memory can be replayed to facilitate the analysis of various data information.
One-click generation of a diagnosis report after diagnosis will help users quickly solve problems, avoid blind maintenance, and save money/time.

One-Click WIFI Free Update Lifetime

1. Turn on the MUCAR VO6 scanner
2. Connect to WIFI
3. Click the upgrade button on the home page to achieve one-click upgrade

Reading Codes

Show the detailed description of the Diagnostic Trouble Code (DTCs)

Erasing Codes & Reset

Turns off Check Engine Light (MIL), clears codes and resets monitors.

Data Stream

Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

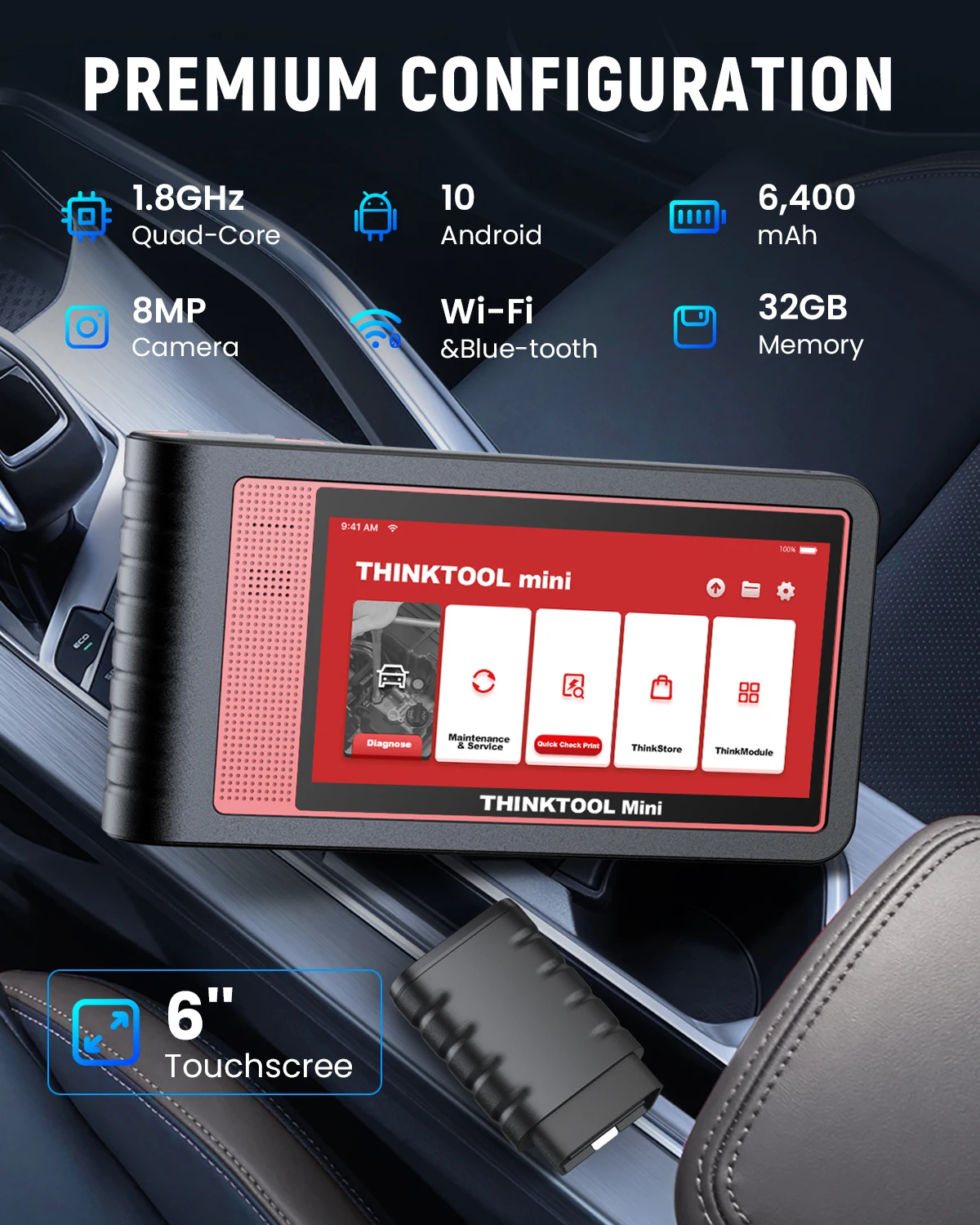

Product Parameters:

Display Screen ：5.99-Inch/TFT(IPS)
Connection :Wi-Fi/Bluetooth
RAM:2G
ROM:32G
Working Temperature : 32℉~122℉
Storage Temperature: -4℉~144℉

Packing List:

1*Thinktool mini Host
1*Diagnostic dongle
1*Charging cable
1*power adapter(EU/UK/US PLUG)

Warranty service：

There is 12 months free warranty from the date of purchase. For any question or problem with this tool, please contact us for help directly and we will feed back to you within 24 hours.
